Swan Neck Oblong Small 125 x 250 B9150
Oblong Small Swan Neck Roof Cowl B9150

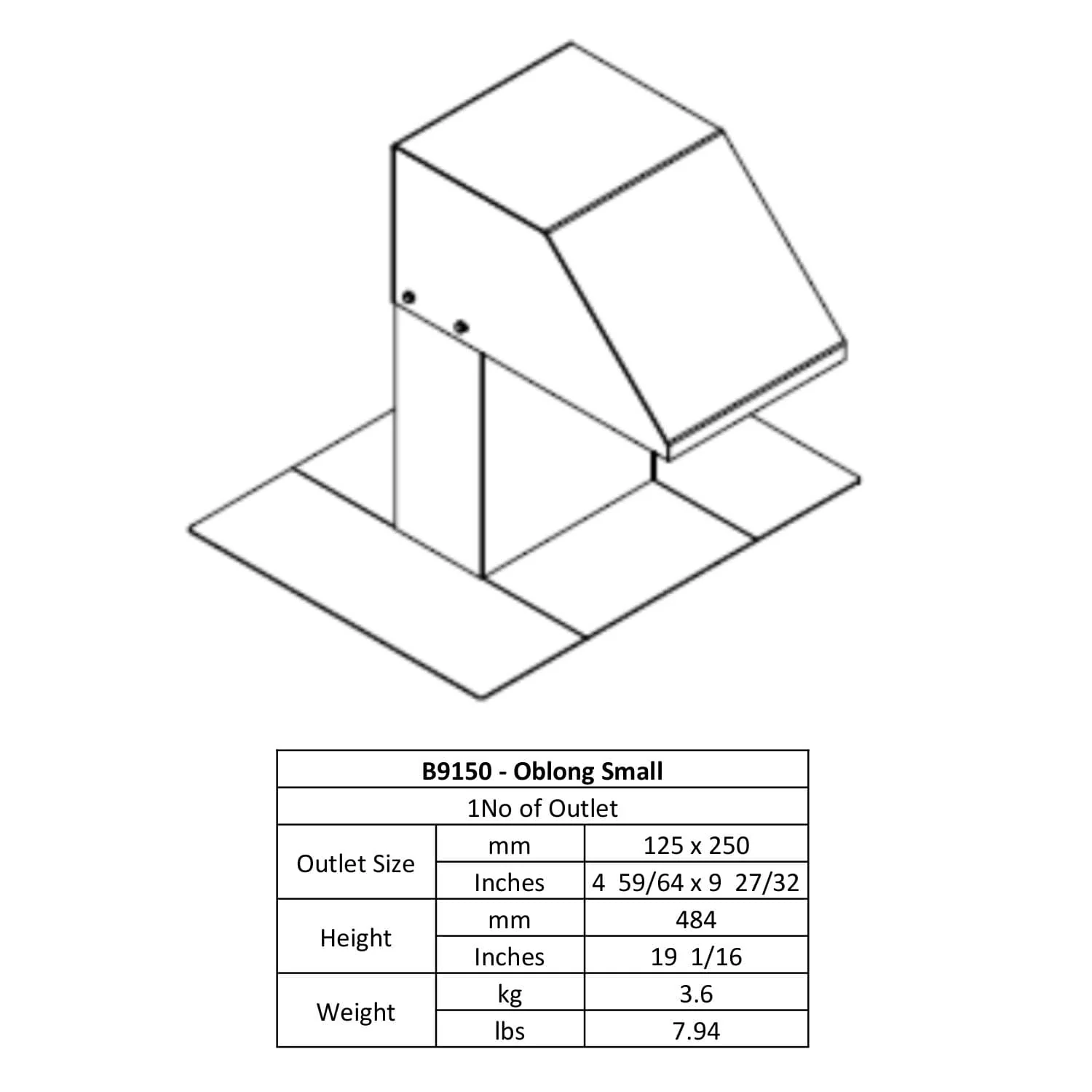

125mm x 250mm
484mm High

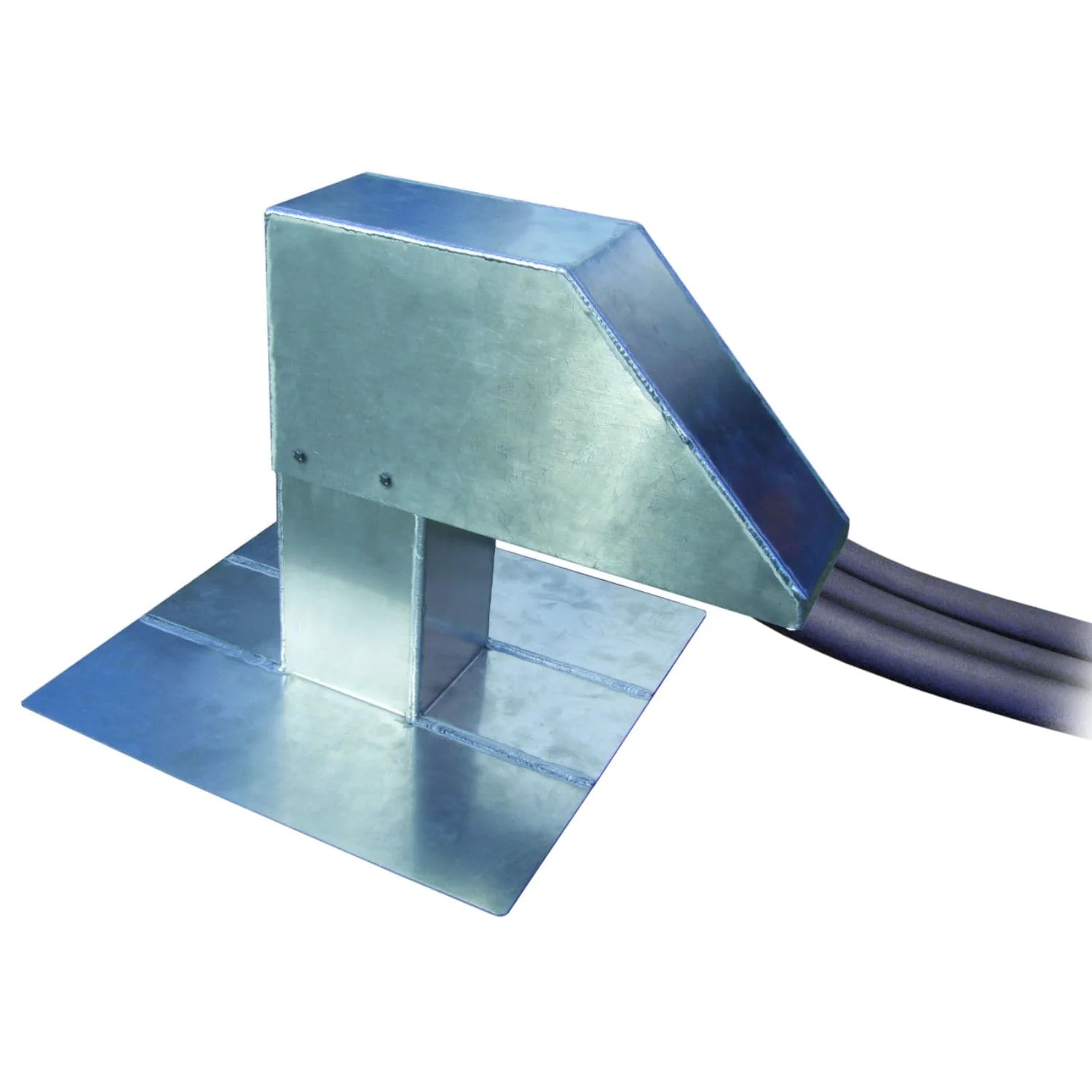

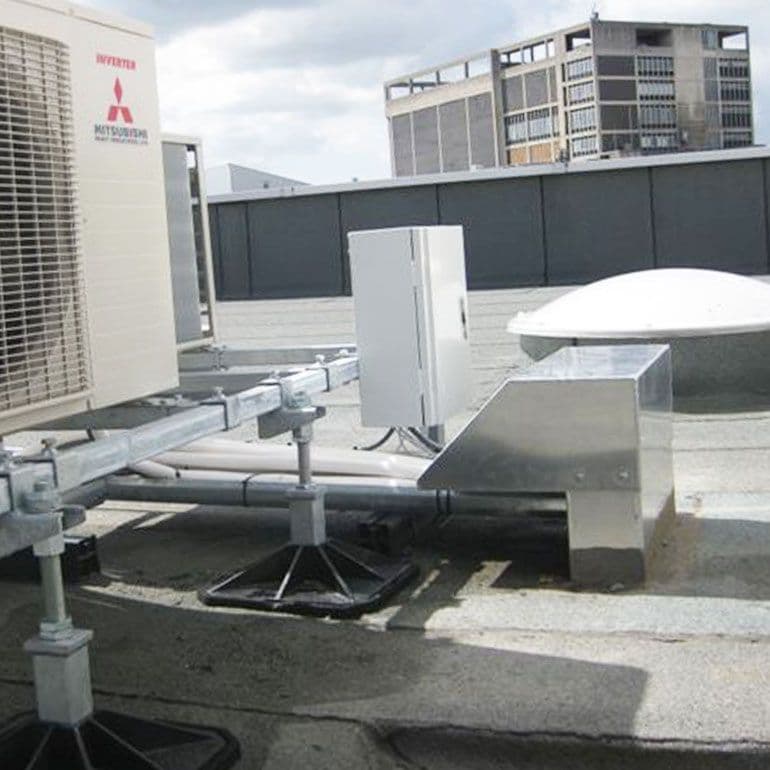

The Big Foot Systems Swan Neck offers a protective solution when penetrating the roof with cable or pipe runs. The Swan Neck makes a full seal with the roof membrane. Made from lightweight aluminium. Six sizes of Swan Necks are available.
Suitable for any roof surface but not limited to including PVC membrane, mastic asphalt, insulation and concrete roof finishes.
Features/ benefits
- Full Hood to protect against rain ingress.
- Cost effective, pre-fabricated support system.
- Versatile range of sizes.
- Boxed for convenience.
Material Specification:
- Aluminium alloy 6061
- Welding standard: BS EN ISO 15614-1.
- Salt mist testing: BS EN 60068-2-52.
- Test Kb severity 1.
All Swan NecksĀ are delivered free with a 2-3 day lead time.
They are not available for next day delivery.
